Ceramic Sand 600L 1000L Granulation Equipment

Widely Used Ceramic Sand Granulator Environmental Friendly Granulation Equipment

Ceramic Sand Granulator Introduction:

The ceramsite is fired into a qualified product. It needs to do two things: one is that gas is generated inside at high temperature, and the other is that the surface melts at high temperature, which can envelop the gas, so that it cannot escape the surface and form a certain amount after cooling. strength.

According to the experience of the ceramsite industry and the exploration and analysis of research institutions, in order to fire qualified ceramsite, there are certain requirements for its composition before firing. Therefore, after analyzing the composition of the main raw material of ceramsite, it is necessary to add some auxiliary materials to make It meets the requirements. Taking the raw material preparation of Chongqing Yongchuan Project as an example, it uses two materials, namely sludge and shale.

Ceramic Sand GranulatorAdvantages:
It is mainly used for production of oil fracturing proppant (ceramic sand), and also be applied for balling powder, granular, small lump material such as coal powder, limestone, coal, clay and etc.

1. The whole process of granulation is inside the fully enclosed drum, and the drum interior is at slightly negative pressure state. It is without dust pollution, clean and environmental friendly.

2. Feed - mixing - nucleation - granulators - shaping,the whole process is controlled by computer through PLC. It is easy operation and high degree of automation;

3. After abrasion treatment, the rotor surface had made precise balancing to ensure movement stability, reliability and wear resistance under high rotational speed. So that the machine can work stable and reliable;

4. The scraper surface has had appropriate wear treatment. The bottom and the inside of the drum is equipped with wear-resistant liner, therefore, the entire drum parts have a long service life.

Ceramic Sand Granulator Working Principle:
The working principle of ZKZL Series Clean Powerful Granulator is to utilize the reverse movement between low speed clockwise rotating drum and high speed counterclockwise rotating rotor to stir material at high speed. There are separate scrapers at the bottom part and wall of the drum. The interaction between drum wall cleaning by scraper and the movement with inclined rotating drum forms a special flow field to change the movement direction of material. Powdery material is "rubbed" to cores during high-speed movement and then and then granulated into a ball.

Disc Granulator Specifications:

1000L Granulation Equipment

600L Granulation Equipment

1000L wet granulation machine

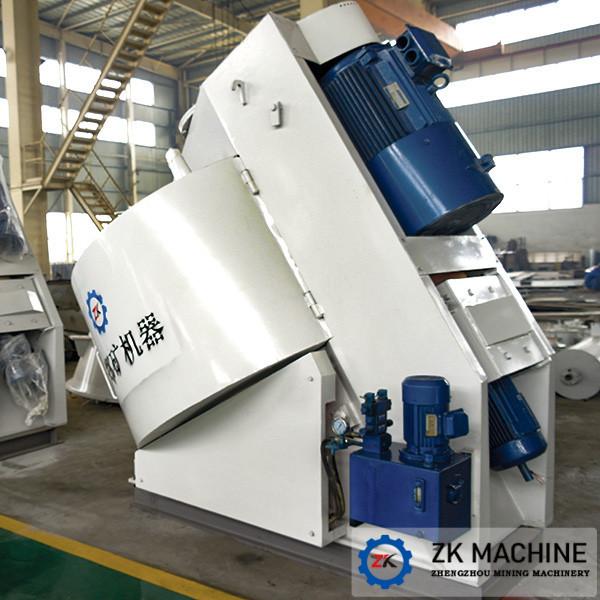

Ceramic Sand 600L 1000L Granulation Equipment Images
