Inclined Belt Conveyor Light Weight / Conveying Equipment

Brand Name : ZK

Model Number : DJ500-DJ800

Certification : CE ISO Certification

Place of Origin : China

MOQ : 1 set

Price : USD 8000-20000 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set / Sets per Month

Delivery Time : 30 days

Packaging Details : Export standard container or as customers' requirements

Product Name : Industrial Belt Conveyor, Grain Conveyor

Condition : New

After-sales Service Provided : Engineers available to service machinery overseas

Max material size : 100-180(mm)

Warranty : 12 Months

Capacity : 84-360(m³/h)

Material : coal, gravel, sand, cement, fertilizer, and grain

Motor type : AC Motor

Spare parts : Supply all using life

Contact Now

Industrial Belt Conveyor / Conveyor for Sale

Belt Conveyor Description:

DJ Large angle belt conveyor uses corrugated sidewall belt instead of normal belt. Its structure and working principle is same with belt conveyor, and most of its components can be used by normal belt conveyor.

Advantages:

1. Light weight, one operator can move it easily.
2. Lifting height can be adjust according to your need.
3. Belt conveyor system provides gentle handling and higher capacity than the same size screw conveyor.
4. With wheels and can be moved to anywhere to save equipment number.
5. Easier for bags or bulk material stacking in warehouse to save your labor cost.
6. Adopt chevron pattern conveyor belt to increase the maximum conveyor angle.
7. The conveyor length can be customized according to your requirement.

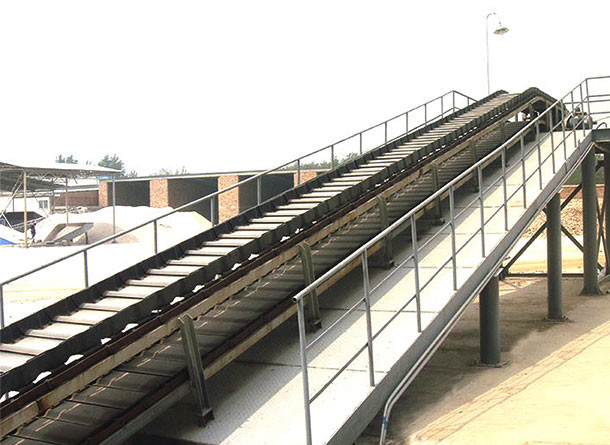

Inclined Belt Conveyor Light Weight / Conveying Equipment

Product Description:

Belt conveyor with high inclination angle and waved guard side is bonded with rubber waveform vertical skirt with free expansion. The skirt is bonded with transverse diaphragms with a certain intensity and elasticity, which makes the material convey in the bucket.

Inclined Belt Conveyor Light Weight / Conveying Equipment

Technical Parameters:

Model	Rubber Belt			Conveying Length(m)	Diameter of Driving Drum (mm)	Max Feeding Size(mm)	Capacity (m³/h)	Power (kW)
Model	Width(mm)	Speed (m/s)	Inclined (°)	Conveying Length(m)	Diameter of Driving Drum (mm)	Max Feeding Size(mm)	Capacity (m³/h)	Power (kW)
TD75-500	500	0.8～2.5	10～20°	2～240	400,500,630	100	69～217	1.5～30
TD75-650	650	0.8～2.5	10～20°	2～240	400,500,630	150	127～397	1.5～45
TD75-800	800	0.8～3.15	10～20°	2～240	400,500,630	200	198～781	2.2～75
TD75-1000	1000	0.8～3.15	10～20°	2～240	500,630,800	300	324～1622	7～100
