Industrial Small Belt Conveyor Equipment / TD 75 Belt Conveyor

Brand Name : ZK

Model Number : Width(mm):400-1200

Certification : CE ISO Certification

Place of Origin : China

MOQ : 1 set

Price : USD 8000-20000 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set / Sets per Month

Delivery Time : 30 days

Packaging Details : Export standard container or as customers' requirements

Product Name : Mobile Belt Conveyor , Small Mining Belt Conveyor ,Industrial Belt Conveyors

Condition : New

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 12 Months

Capacity : 30-480t/h

Material : feldspar, quartz, clay, silica and other hard brittle materials

Motor type : AC Motor

Spare parts : Supply all using life

Voltage : 220V/380V/440

Contact Now

Belt Conveyor Price / Small Mining Belt Conveyor / Industrial Belt Conveyors

Belt Conveyor Introduction:

Belt Conveyor is an ideal high-efficiency continuous conveyor and widely used in coal, transportation, water, electricity, mineral processing, chemical, food, metallurgy and other industries, which is able to improve the production efficiency.
According to different technique requirements, the machine can convey material singly or be formed conveying system with other conveying equipment to meet different requirements of working line.

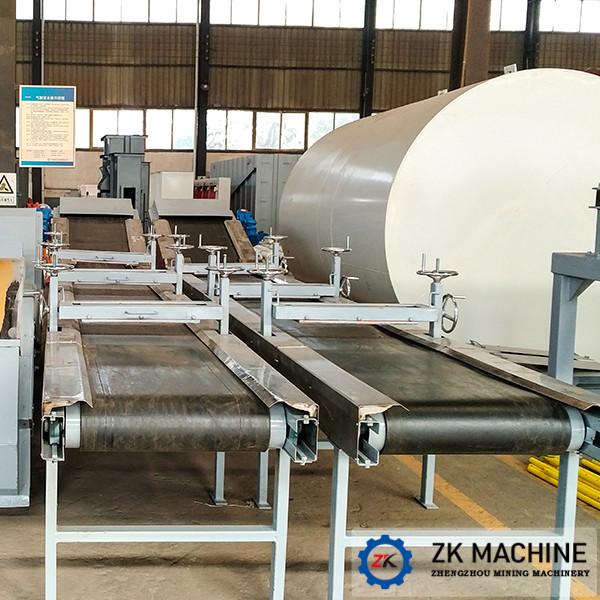

Industrial Small Belt Conveyor Equipment / TD 75 Belt Conveyor

Advantages of Belt Conveyor:
1, The length can be adjusted according to users’ needs. It also can be used as a series by connecting each other to make up for the disadvantages of production environment. At the same time, it can reduce the use of labor force.
2, More automotive and easily controlled centralized. Besides, belt conveyor can adjust the transfer speed and the quantity of flow.
3, Because of its simple structure and light rack, it is easy for disassembling and assembling to make the dairy maintenance convenient.
4, Low investment cost. Rubber conveyor belt has strong universality and can be used in many industries.
5, conveyor belt can be extended and shortened according to the working needs and can adjust the driving equipment to meet the production needs.

Industrial Small Belt Conveyor Equipment / TD 75 Belt Conveyor

Small Mining Belt Conveyor Technical Parameters:

Model	Rubber Belt			Conveying Length(m)	Diameter of Driving Drum (mm)	Max Feeding Size(mm)	Capacity (m³/h)	Power (kW)
Model	Width(mm)	Speed (m/s)	Inclined (°)	Conveying Length(m)	Diameter of Driving Drum (mm)	Max Feeding Size(mm)	Capacity (m³/h)	Power (kW)
TD75-500	500	0.8～2.5	10～20°	2～240	400,500,630	100	69～217	1.5～30
TD75-650	650	0.8～2.5	10～20°	2～240	400,500,630	150	127～397	1.5～45
TD75-800	800	0.8～3.15	10～20°	2～240	400,500,630	200	198～781	2.2～75
TD75-1000	1000	0.8～3.15	10～20°	2～240	500,630,800	300	324～1622	7～100
