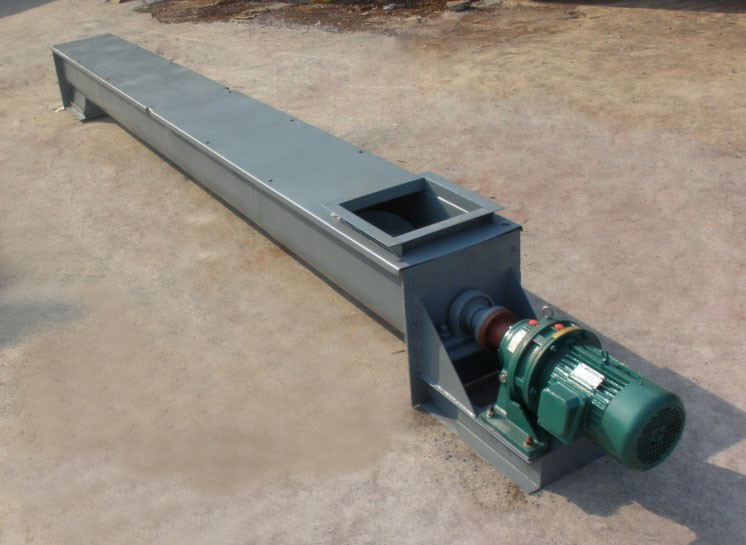

Screw Conveyor for Fly Ash / Inclined Screw Conveyor for Sale
Screw Conveyor Introduction:
Screw conveyor used in electric power, chemical industry, metallurgy, coal, machinery, light industry:
LS type screw conveyor is international standard product, equivalent accord with the ISO1050-75 standard, design and manufacture accord with professional ZBJ1005.1-2-88 standard. Its advanced technical indicators, the structure is novel,it is our country in the ninety s to replace the replacement of the GX type screw conveyor.
LS type screw conveyor in the scope of application: screw machine is widely used in various industrial sectors, such as building materials, electric power, chemical industry, metallurgy, coal, machinery, light industry, food and food industry. The conveyor used to transport dry ash.
LS screw conveyor require for conveying material: powder, granulated and small lump materials, such as cement, coal, grain, chemical fertilizer, ash, sand, etc., the material temperature shall not exceed 200 ℃, screw machine should not transport perishable materials, big viscosity, easy to agglomerate. Because these materials in the transmission will be binding on the screw, and then rotate and do not move forward, or materials at suspension bearing product and make the screw machine can't work normally.
ZK CORP is a comprehensive enterprise focusing on equipment research and development, equipment manufacturing, and service. The company has rich design and manufacturing experience and many successful performances on the ash handling, slag handling, dust removing, desulfurization and denitration for CFB boiler and pulverizing coal boiler.
Screw Conveyor Specifications:
| Model | Screwdia (mm) | Rov. Speed (rpm) | Horizontal Conveying Capacity(m3/h) | Inclined Conveying Capacity(M3) |
| LSS200 | 160 | 18-25 | 1-1.5 | Q平*(1-ａ) |
| LSS240 | 200 | 18-25 | 1.5-2.2 | Q平*(1-ａ) |
| LSS260 | 220 | 18-25 | 42769 | Q平*(1-ａ) |
| LSS300 | 260 | 18-25 | 42799 | Q平*(1-ａ) |
| LSS320 | 280 | 18-25 | 42861 | Q平*(1-ａ) |
| LSS360 | 320 | 18-25 | 42896 | Q平*(1-ａ) |
| LSS380 | 340 | 18-25 | 43022 | Q平*(1-ａ) |
| LSS420 | 380 | 18-25 | 14-20 | Q平*(1-ａ) |
| LSS460 | 420 | 18-25 | 20-25 | Q平*(1-ａ) |
| LSS500 | 450 | 18-25 | 25-35 | Q平*(1-ａ) |
| LSS600 | 550 | 18-25 | 35-60 | Q平*(1-ａ) |
| LSS650 | 600 | 18-25 | 60-85 | Q平*(1-ａ) |
Henan Zhengzhou Mining Machinery Co., Ltd has become an integrated modern enterprise with scientific research, design, development, manufacturing, sales, installation, commissioning and training services.
Product Tags:
|
|

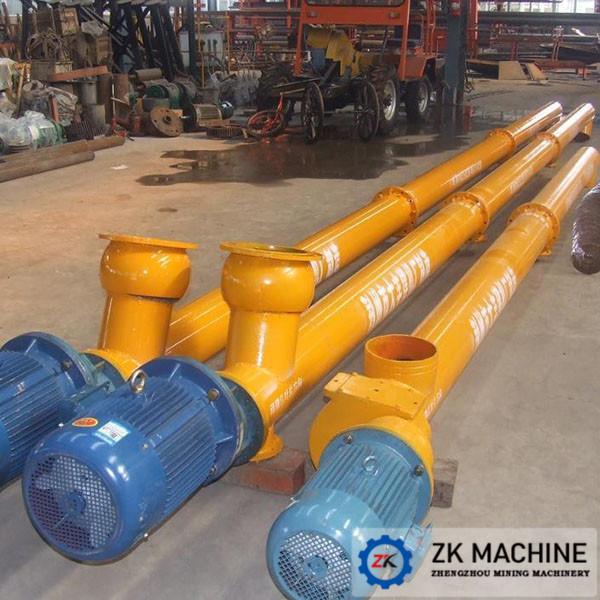

Electric Fly Ash Conveying Equipment Durable High Transportation Capacity Images
|
